Cooling Tower Inspection & Performance Testing Thailand

Synergy Services provides cooling tower inspection and performance testing in Thailand, helping industrial plants improve efficiency, reduce energy consumption, and prevent unexpected downtime.

What We Offer

• Cooling tower thermal performance evaluation (CTI-standard)
• Airflow and fan performance analysis

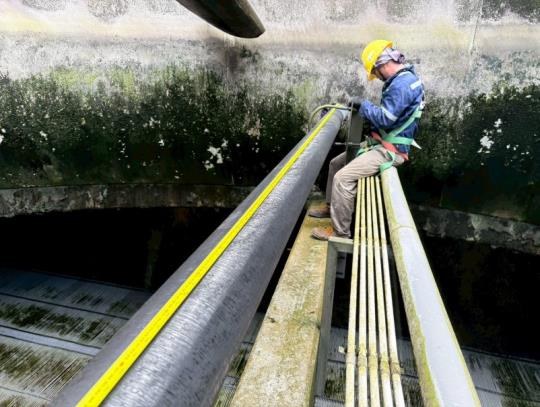

• Mechanical inspection of key components (fill, eliminators, nozzles, basin)
• Water distribution uniformity check

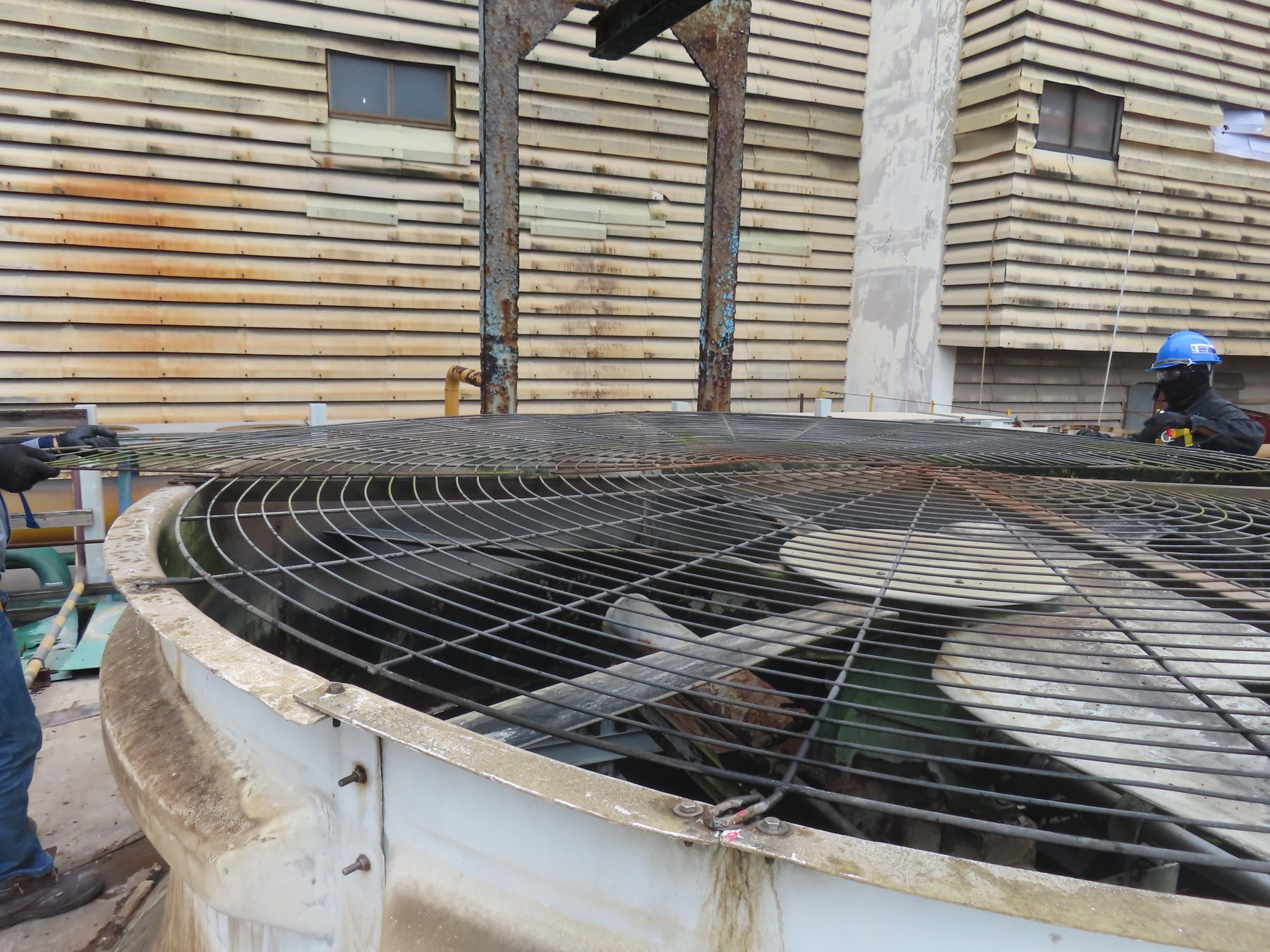

• Vibration analysis on rotating equipment

The cooling tower industry’s acceptance test code for thermal performance is CTI ATC-105 (Acceptance Test Code for Water Cooling Towers). It defines how an acceptance test measures a tower’s performance — hot-water and cold-water temperatures, entering wet-bulb temperature, and circulating water flow rate — against its original design rating.

We support factories across Chonburi, Rayong, Khon Kaen, and the Eastern Seaboard with reliable, data-driven assessments. For the fundamentals, see our guide to cooling tower performance testing.

What a Performance Test Measures

Two derived numbers, alongside the raw temperatures, tell you how a tower is actually performing:

• Range — hot-water temperature minus cold-water temperature. This is the heat the tower is rejecting; it moves with process load, not tower condition on its own.
• Approach — cold-water temperature minus the entering wet-bulb temperature. This is how close the tower gets to the theoretical limit set by the outside air, and it is the number most sensitive to tower condition: a wider approach than design, at a comparable range and wet-bulb, points at lost capacity somewhere in the tower.

Alongside range and approach we record water flow and fan power, and calculate cooling effectiveness — how much of the available range-to-approach gap the tower actually closes. Two of our published case studies show what that number looks like in practice: at a process-site Lube Plant Cell D, effectiveness measured 79.58% before fill/nozzle/eliminator replacement and 87.55% after; at a chemical-site Cell A, a fouled cell measured 37.5% effectiveness before cleaning and 53.7% after. Both reports are explicit that a before/after comparison like this is a measured indicator under the two test conditions, not a certified capability rating — see each project page for the caveat in full.

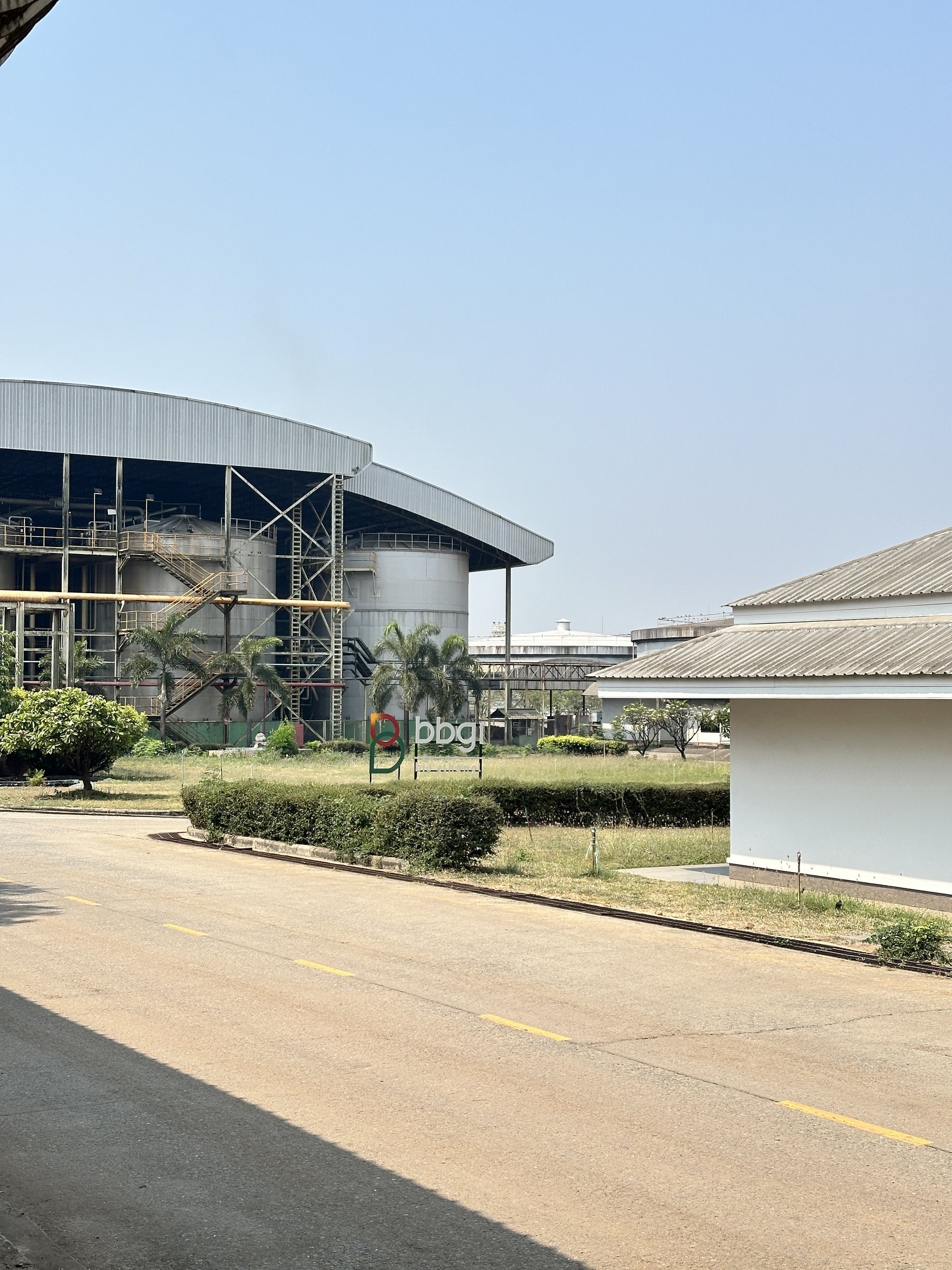

Where the original manufacturer performance curve isn’t available, we can still place a tower’s field result against a generated reference curve and separate that field result from any estimate against the tower’s original design basis, rather than blurring the two together. Our Kanchanaburi biofuel-site assessment shows the method: a generated-curve result of 66.4%, a field-test-against-that-curve result of 73.6%, and the two multiplied together into an explicitly-labelled 48.9% engineering estimate against the original design — never presented as a CTI-certified figure.

How We Test

A performance test involves installing calibrated instruments to measure wet-bulb temperature, dry-bulb temperature, water flow rate, cold-water temperature, hot-water temperature, and fan power; collecting data over a stable operating period; analysing the results with the CTI Toolkit or equivalent thermal modelling software; and issuing a report with findings and recommendations. Testing runs with the tower in normal operation — no shutdown is required.

On multi-cell towers we test and report cell by cell rather than averaging the tower into one number. On the Kanchanaburi biofuel-site assessment, the three cells of unit U-911 measured 23.00, 22.35 and 21.65 m³/s of airflow at 14.48, 12.90 and 13.69 kW of fan power respectively — a spread that a single tower-average figure would have hidden. That cell-level baseline is also what makes a later test comparable: plant teams can check the same cells again rather than relying on one temperature reading.

Counterflow vs. Crossflow: What Changes During a Test

Both designs are common across the towers we test, and the difference shapes how a test is planned and where instruments go:

That last row is exactly what our Kanchanaburi biofuel-site assessment shows in practice: U-911 is a three-cell induced-draft crossflow tower, and its cell-by-cell airflow and fan-power breakdown reflects that face-by-face measurement approach rather than a single traverse per cell.

What a Test Typically Finds

The failure modes below are drawn from our own case studies, not a generic industry list — each one is a real Synergy project, linked so you can see the underlying data:

We don’t yet have the data to rank these by how often each one turns up across our project base — each row above is a documented finding, not a frequency statistic. Treat the table as the range of what a test can surface, not a probability order.

What You Receive

Every project above produced the same kind of deliverable, and yours will follow the same structure: a project-at-a-glance summary of scope and test dates, a measured-parameter table (temperatures, flow, effectiveness or capability result), a cell-by-cell breakdown on multi-cell towers, and — where a comparison spans two tests or relies on a generated curve rather than the original manufacturer data — an explicit statement of that limitation rather than an overstated conclusion. Findings translate directly into a recommendation: continue monitoring, plan a parts replacement or overhaul, or scope an upgrade where the gap to design is structural rather than a single worn component.

Downtime and When to Test

Performance testing itself requires no shutdown — it is carried out with the tower in normal operation, cell by cell where the tower has more than one. That makes it a low-risk first step rather than something to defer until a turnaround. We recommend testing after any major maintenance or overhaul (to confirm the work delivered what it should), when process temperatures run higher than expected, or as part of an annual efficiency review. If your tower’s water isn’t reaching target temperature and you’re not yet sure why, our checklist for a warm cooling tower walks through the field checks to run before committing to a formal test. It is also the right starting point before committing budget to a parts replacement or upgrade project — the Kanchanaburi biofuel-site assessment above was explicitly commissioned to build that baseline for maintenance and upgrade decisions, not just to produce a single test result.

Why Performance Testing Matters

A cooling tower operating below its rated efficiency forces your process equipment — chillers, compressors, heat exchangers — to work harder. This raises energy costs and accelerates wear. Regular testing detects these losses before they become serious.

Key Benefits

• Early problem detection — identify degraded fill, blocked nozzles, and worn mechanical parts before they cause breakdowns
• Energy savings — quantify efficiency losses and target improvements that reduce fan and chiller power consumption
• Informed maintenance planning — prioritise maintenance spend based on actual condition data, not guesswork
• Capital investment justification — use test data to build a business case for upgrades or fill replacement
• Compliance support — provide documented evidence of cooling system performance for regulatory or insurance requirements

Industries We Serve

Our inspection and testing services are used by plants in:

• Petrochemical and chemical processing
• Power generation (coal, natural gas, biomass)
• Sugar and ethanol production
• Pulp, paper, and packaging
• Cement and building materials manufacturing
